JKQTEColorSlider Class Reference

a QSlider that allows to choose a color hue More...

#include <jkqtecolorslider.h>

Inheritance diagram for JKQTEColorSlider:

Collaboration diagram for JKQTEColorSlider:

Public Types
enum	IndicatorStyle {   FixedColorDoubleArrowIndicator =0,   FixedColorCircleIndicator,   SelectedColorDoubleArrowIndicator,   SelectedColorCircleIndicator }
	available modes for the slider More...
enum	SliderMode {   GreySlider =0,   GraySlider =GreySlider,   RedSlider,   GreenSlider,   BlueSlider,   HueSlider,   SaturationSlider,   ValueSlider,   TransparencySlider,   AlphaSlider =TransparencySlider }
	available modes for the slider More...

Public Slots
void	setBaseColor (QColor baseColor)
	sets the currently set base color that is modified by the slider More...
void	setSliderMode (SliderMode mode)
	sets the currently set color/slider mode More...

Signals
void	colorChanged (QColor color)
	emitted when the slider moves, the color is based on the baseColor(), modified by the slider value More...

Public Member Functions
	JKQTEColorSlider (Qt::Orientation orientation, QWidget *parent=nullptr)
	JKQTEColorSlider (QWidget *parent=nullptr)
	JKQTEColorSlider (SliderMode mode, Qt::Orientation orientation, QWidget *parent=nullptr)
	JKQTEColorSlider (SliderMode mode, QWidget *parent=nullptr)
QColor	baseColor () const
	returns the currently set base color that is modified by the slider More...
QBrush &	indicatorBrush ()
	returns the QBrush used to draw the indicator More...
const QBrush &	indicatorBrush () const
	returns the QBrush used to draw the indicator More...
QPen &	indicatorPen ()
	returns the QPen used to draw the indicator More...
const QPen &	indicatorPen () const
	returns the QPen used to draw the indicator More...
IndicatorStyle	indicatorStyle () const
	style of the indicator More...
virtual QSize	minimumSizeHint () const override
QColor	modifiedColor () const
	takes the color baseColor() and applies the value of the slider to the color More...
QColor	modifiedColor (QColor colorIn) const
	takes the color colorIn and applies the value of the slider to the color More...
void	setIndicatorBrush (const QBrush &b)
	sets the QBrush used to draw the indicator More...
void	setIndicatorPen (const QPen &p)
	sets the QPen used to draw the indicator More...
void	setIndicatorStyle (IndicatorStyle s)
	sets the style of the indicator More...
virtual QSize	sizeHint () const override
SliderMode	sliderMode () const
	returns the currently set color/slider mode More...

Protected Slots
void	baseSliderChanged (int value)

Protected Member Functions
virtual void	paintEvent (QPaintEvent *ev) override
	paints the slider More...

Static Protected Member Functions
static QColor	defaultBaseColor (SliderMode mode)
	returns the default base color for a given slider mode More...

Protected Attributes
QColor	m_baseColor
	currently set base color that is modified by the slider More...
QBrush	m_indicatorBrush
	QBrush used to draw the indicator More...
QPen	m_indicatorPen
	QPen used to draw the indicator More...
IndicatorStyle	m_indicatorStyle
	style of the indicator More...
SliderMode	m_mode
	currently set color/slider mode More...

Properties
QColor	baseColor
QBrush	indicatorBrush
QPen	indicatorPen
IndicatorStyle	IndicatorStyle
SliderMode	sliderMode

Detailed Description

a QSlider that allows to choose a color hue

Horizontal Hue-Slider:

Vertical Hue Slider:

Basic usage is simple:


    JKQTEColorSlider* slider=new JKQTEColorSlider(Qt::Horizontal, wid);
    slider->setSliderMode(JKQTEColorSlider::HueSlider);
    slider->setIndicatorStyle(JKQTEColorSlider::FixedColorDoubleArrowIndicator);
    lay->addRow("JKQTEColorSlider, horizontal, HueSlider:", slider);


Base Color Mode

Especially when building a color-chooser, you need to combine several sliders. That then define a color together. To support such modes, the slider can use a "base color" i.e. an input color which is then modified and output again. The following functions support this mode:

• setBaseColor()
• baseColor()
• modifiedColor()
• Signal: colorChanged()

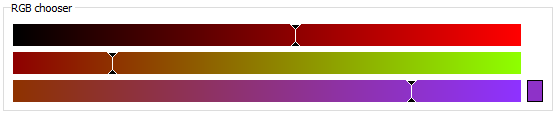

Here is an example of how to use this feature:


    QGroupBox* grp=new QGroupBox("RGB chooser");
    QGridLayout* layGrp=new QGridLayout;
    grp->setLayout(layGrp);

    JKQTEColorSlider* sliderR=new JKQTEColorSlider(Qt::Horizontal, grp);
    sliderR->setSliderMode(JKQTEColorSlider::RedSlider);
    layGrp->addWidget(sliderR, 0,0);

    JKQTEColorSlider* sliderG=new JKQTEColorSlider(Qt::Horizontal, grp);
    sliderG->setSliderMode(JKQTEColorSlider::GreenSlider);
    layGrp->addWidget(sliderG, 1,0);

    JKQTEColorSlider* sliderB=new JKQTEColorSlider(Qt::Horizontal, grp);
    sliderB->setSliderMode(JKQTEColorSlider::BlueSlider);
    layGrp->addWidget(sliderB, 2,0);

    connect(sliderR, SIGNAL(colorChanged(QColor)), sliderG, SLOT(setBaseColor(QColor)));
    connect(sliderG, SIGNAL(colorChanged(QColor)), sliderB, SLOT(setBaseColor(QColor)));


Member Enumeration Documentation

IndicatorStyle

enum JKQTEColorSlider::IndicatorStyle

available modes for the slider

the appearance and the range of the slider depend on this

Enumerator
FixedColorDoubleArrowIndicator	draws two inward pointing triangles as indicator, filled with indicatorBrush()
FixedColorCircleIndicator	draws a circle as indicator, filled with indicatorBrush()
SelectedColorDoubleArrowIndicator	draws two inward pointing triangles as indicator, filled with the current color
SelectedColorCircleIndicator	draws a circle as indicator, filled with the current color

SliderMode

enum JKQTEColorSlider::SliderMode

available modes for the slider

the appearance and the range of the slider depend on this

Enumerator
GreySlider	the slider modifies the grey color channel
GraySlider	the slider modifies the grey color channel
RedSlider	the slider modifies the red color channel
GreenSlider	the slider modifies the green color channel
BlueSlider	the slider modifies the blue color channel
HueSlider	the slider modifies the hue color channel (from HSV color model)
SaturationSlider	the slider modifies the saturation color channel (from HSV color model)
ValueSlider	the slider modifies the value color channel (from HSV color model)
TransparencySlider	the slider modifies the transparency color channel
AlphaSlider	the slider modifies the transparency color channel

Constructor & Destructor Documentation

JKQTEColorSlider() [1/4]

JKQTEColorSlider::JKQTEColorSlider ( QWidget *  parent = nullptr )

explicit

JKQTEColorSlider() [2/4]

JKQTEColorSlider::JKQTEColorSlider ( Qt::Orientation  orientation, QWidget *  parent = nullptr  )

explicit

JKQTEColorSlider() [3/4]

JKQTEColorSlider::JKQTEColorSlider ( SliderMode  mode, QWidget *  parent = nullptr  )

explicit

JKQTEColorSlider() [4/4]

JKQTEColorSlider::JKQTEColorSlider ( SliderMode  mode, Qt::Orientation  orientation, QWidget *  parent = nullptr  )

explicit

Member Function Documentation

baseColor()

QColor JKQTEColorSlider::baseColor

(

)

const

returns the currently set base color that is modified by the slider

See also

Base Color Mode baseColor(), setBaseColor(), modifiedColor(), colorChanged()

baseSliderChanged

void JKQTEColorSlider::baseSliderChanged ( int  value )

protectedslot

colorChanged

void JKQTEColorSlider::colorChanged ( QColor  color )

signal

emitted when the slider moves, the color is based on the baseColor(), modified by the slider value

See also

Base Color Mode baseColor(), setBaseColor(), modifiedColor(), colorChanged()

defaultBaseColor()

static QColor JKQTEColorSlider::defaultBaseColor ( SliderMode  mode )

staticprotected

returns the default base color for a given slider mode

indicatorBrush() [1/2]

QBrush& JKQTEColorSlider::indicatorBrush

(

)

returns the QBrush used to draw the indicator

indicatorBrush() [2/2]

const QBrush& JKQTEColorSlider::indicatorBrush

(

)

const

returns the QBrush used to draw the indicator

indicatorPen() [1/2]

QPen& JKQTEColorSlider::indicatorPen

(

)

returns the QPen used to draw the indicator

indicatorPen() [2/2]

const QPen& JKQTEColorSlider::indicatorPen

(

)

const

returns the QPen used to draw the indicator

indicatorStyle()

IndicatorStyle JKQTEColorSlider::indicatorStyle

(

)

const

style of the indicator

minimumSizeHint()

virtual QSize JKQTEColorSlider::minimumSizeHint ( ) const

overridevirtual

modifiedColor() [1/2]

QColor JKQTEColorSlider::modifiedColor

(

)

const

takes the color baseColor() and applies the value of the slider to the color

See also

Base Color Mode baseColor(), setBaseColor(), baseColor(), colorChanged()

modifiedColor() [2/2]

QColor JKQTEColorSlider::modifiedColor

(

QColor

colorIn

)

const

takes the color colorIn and applies the value of the slider to the color

paintEvent()

virtual void JKQTEColorSlider::paintEvent ( QPaintEvent *  ev )

overrideprotectedvirtual

paints the slider

setBaseColor

void JKQTEColorSlider::setBaseColor ( QColor  baseColor )

slot

sets the currently set base color that is modified by the slider

See also

Base Color Mode baseColor(), baseColor(), modifiedColor(), colorChanged()

setIndicatorBrush()

void JKQTEColorSlider::setIndicatorBrush

(

const QBrush &

b

)

sets the QBrush used to draw the indicator

setIndicatorPen()

void JKQTEColorSlider::setIndicatorPen

(

const QPen &

p

)

sets the QPen used to draw the indicator

setIndicatorStyle()

void JKQTEColorSlider::setIndicatorStyle

(

IndicatorStyle

s

)

sets the style of the indicator

setSliderMode

void JKQTEColorSlider::setSliderMode ( SliderMode  mode )

slot

sets the currently set color/slider mode

The appearance and the range of the slider depend on this

Note

This also changes the range of the slider!

See also

SliderMode sliderMode()

sizeHint()

virtual QSize JKQTEColorSlider::sizeHint ( ) const

overridevirtual

sliderMode()

SliderMode JKQTEColorSlider::sliderMode

(

)

const

returns the currently set color/slider mode

The appearance and the range of the slider depend on this

See also

SliderMode setSliderMode()

Member Data Documentation

m_baseColor

QColor JKQTEColorSlider::m_baseColor

protected

currently set base color that is modified by the slider

See also

Base Color Mode baseColor(), baseColor(), modifiedColor(), colorChanged()

m_indicatorBrush

QBrush JKQTEColorSlider::m_indicatorBrush

protected

QBrush used to draw the indicator

m_indicatorPen

QPen JKQTEColorSlider::m_indicatorPen

protected

QPen used to draw the indicator

m_indicatorStyle

IndicatorStyle JKQTEColorSlider::m_indicatorStyle

protected

style of the indicator

m_mode

SliderMode JKQTEColorSlider::m_mode

protected

currently set color/slider mode

Property Documentation

baseColor

QColor JKQTEColorSlider::baseColor

readwrite

indicatorBrush

QBrush JKQTEColorSlider::indicatorBrush

readwrite

indicatorPen

QPen JKQTEColorSlider::indicatorPen

readwrite

IndicatorStyle

IndicatorStyle JKQTEColorSlider::IndicatorStyle

readwrite

sliderMode

SliderMode JKQTEColorSlider::sliderMode

readwrite

---

The documentation for this class was generated from the following file:

• jkqtecolorslider.h
